Define categories for the categorized visual items

Categories for categorized visual items are defined in the protected CategorizedVisualItem_Category enumeration. Each enumeration item in the enumeration is a category. The enumeration definition includes formatting of the display of category information in the categorized visual item.

To define categories, go to the Meta-Model tab in Alfabet Expand, expand the Enumerations node in the explorer and do any of the following:

Add new enumeration item categories. Right-click the node of the CategorizedVisualItem_Category enumeration and select Add New Enumeration Items. You can define one or multiple enumeration items in the editor. Separate enumeration items with a line break. The enumeration item value is displayed on the user interface if no caption is defined in the attributes of the enumeration item.

Delete categories. Right-click the enumeration item node and select Delete.

Change the caption and icon of categories. Caption and icon are used to represent the category on the user interface. A hint is currently not displayed for categories on the user interface. Click the enumeration item node and change the attributes:

Change the colors used for categories. Coloring is used to display categories in the categorized visual items. Colors can be assigned directly in the enumeration item or assigned via style groups. Coloring defined in style groups can be adapted to the overall design of custom themes on the user interface. If the user selects a different theme to be applied, the colors used for enumeration items will change according to the setting for the style group in the selected scheme. Users may then see an enumeration item in dark green in one scheme and in light blue in another scheme. Scheme configuration is designed to consider 508 compliance and to provide a means to customers to adapt the styles to their corporate identity. The following description includes the definition of a new style group. For many protected enumerations, there is already a style group defined. You can then change the values in the existing style group instead of defining a new one.

  1. Go to the Reusable Elements tab.
  2. Right-click the User Interface Groups node and select Create New Style Group.
  3. Click the new style group node and set the attributes:
    • Name: Change the name to a meaningful name for display in the explorer in Alfabet Expand.
    • Caption: Change the caption to a meaningful caption for display in the Alfabet user interface in the views to edit the coloring for a new custom theme.
    • Type: Select Enum.
  4. For each enumeration item in your enumeration, do the following:
    1. Right-click the style group node and select Create Style.
    2. Click the new style node and change the Name and Caption attributes to match one of the enumeration item values in your enumeration.
    3. Expand the style node, click the child nodes, set the Default Color attribute for the following colors and define a Caption and Description. Caption and Description are displayed to administrative users changing colors for color themes on the Alfabet user interface.

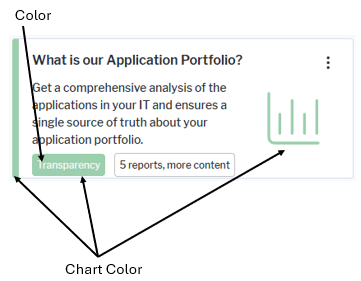

      • Color: The font color used for the text of the category field in the categorized visual item.
      • Chart Color: The chart color is used to color the category field, the left border, and the icon in the categorized visual item.

    Ex_Views_CategorizedVI_Colors

  5. Go to the Meta-Model tab.
  6. For each enumeration item in your CategorizedVisualItem_Category enumeration, do the following:
    1. Click the enumeration item node and edit the attributes:
      • Style Group: Select the style group for the enumeration.
      • Style: Select the style of the enumeration item in the style group.
